Strategic Relationships

Strategic relationships with pump OEM’s are the backbone of CSM’s surface pump offerings. An authorized Level 1 National Oilwell Varco (NOV) distributor since 2002, the NOV reciprocating pump line is complemented by other authorized distributorships such as Oilwell, National, Wheatley, Gaso, Bear, Moyno, Monoflo, Griswold, Blackmer, Gorman-Rupp, Magnatex, Grundfos, Pioneer, Continental, Börger, and Mission products.

With an inventory of over $6.5M of pump parts in stock, your product solution is just a click away.

Pump Offerings

  • Reciprocating API 674 Plunger Pumps
    Reciprocating API 674 Plunger Pumps

    National, Oilwell, Wheatley, Gaso, Bear, Weatherford, FMC

  • Horizontal Multistage Centrifugal Pumps
    Horizontal Multistage Centrifugal Pumps

    REDA, Borets, Summit

  • Progressive Cavity API 676 Pumps
    Progressive Cavity API 676 Pumps

    Moyno, Monoflo, Continental, Seepex

  • ANSI B73.1 Centrifugal
    ANSI B73.1 Centrifugal

    Griswold, Magnatex, Titan

  • Sliding Vane Pumps
    Sliding Vane Pumps

    Blackmer

  • Vertical In-Line Multistage Centrifugal Pumps
    Vertical In-Line Multistage Centrifugal Pumps

    Grundfos

  • MAG-DRIVE SEALLESS CENTRIFUGAL PUMPS
    MAG-DRIVE SEALLESS CENTRIFUGAL PUMPS

    Magnatex

  • Rotary Gear Pumps
    Rotary Gear Pumps

    Viking, Blackmer, Gorman-Rupp

  • ENGINE DRIVE PUMPS
    ENGINE DRIVE PUMPS

    NOV, Pioneer, All Pumps

  • SELF PRIMING PUMPS
    SELF PRIMING PUMPS

    Pioneer, Gorman Rupp, Titan

  • SLURRY AND FRESH WATER PUMPS
    SLURRY AND FRESH WATER PUMPS

    Pioneer, Mission Magnum, Sand Master, 2500 Supreme, Type S & W

  • Rotary Lobe API 676 Pumps
    Rotary Lobe API 676 Pumps

    Börger

  • Rotary Vane Compressors
    Rotary Vane Compressors

    Ro-Flo

  • Sealess Diaphragm Pumps
    Sealess Diaphragm Pumps

    Hydra-Cell

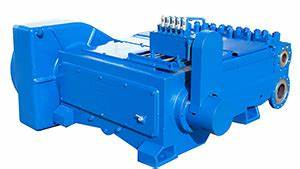

Reciprocating API 674 Plunger Pumps

Brands
National, Oilwell, Wheatley, Gaso, Bear, Weatherford, FMC

Applications
- Water / Oil / Emulsion / Condensate / Polymer Injection
- Waste Disposal
- Jet Pumps
- Boiler Feed Pumps
- Waterflood Pumps
- Most Fluids

Specifications
- Horsepower up to 630 hp (470 kw)
- Volume up to 1,120 usgpm (6,105 m3/day)
- Pressure up to 10,000 psig (69,000 kpag)
- Available Materials: Ductile Iron, Carbon Steel, Nickel Aluminum Bronze, 316 Stainless Steel, Duplex Stainless Steel, and Super Duplex Stainless Steel

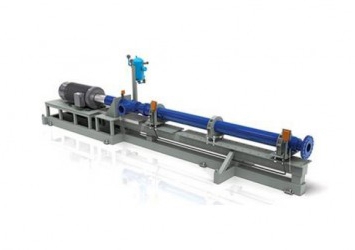

Horizontal Multistage Centrifugal Pumps

Brands
REDA, Borets, Summit

Applications
- Water Injection
- Condensate Injection
- Waste Disposal
- Natural Gas Liquids (NGL) Pipeline
- Light to Heavy Oil
- Most Fluids

Specifications
- Horsepower up to 2,500 hp (1865 kw)
- Volume up to 2,500 usgpm (13,620 m3/day)
- Pressure up to 6,650 psig (45,850 kpag)
- Available Materials: ni-resist and 316 Stainless Steel

Progressive Cavity API 676 Pumps

Brands
Moyno, Monoflo, Continental, Seepex

Applications
- Oil / Emulsion / Condensate / Polymer Transfer
- Low to High Viscous Fluids
- Abrasive Fluids
- Recycle Pumps
- Skim Pumps
- Sump Pumps
- Most Fluids

Specifications
- Horsepower up to 50 hp (37 kw)
- Volume up to 380 usgpm (2,070 m3/day)
- Pressure up to 450 psig (3,100 kpag)
- Available Materials: Cast Iron, and 316 Stainless Steel

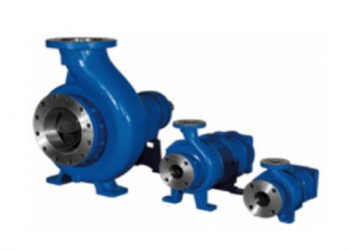

ANSI B73.1 Centrifugal

Brands
Griswold, Magnatex, Titan

Applications
- Water / Oil / Emulsion / Condensate Transfer
- Booster / Charge Pumps
- Transfer Pumps
- Corrosive Fluids
- Most Fluids

Specifications
- Horsepower up to 250 hp (185 kw)
- Volume up to 5,000 usgpm (27,250 m3/day)
- Pressure up to 720 ft (220 m) 310 psig (2,140 kpag)
- Available Materials: Ductile Iron, 316SS, Duplex Stainless Steel, Nickel, Alloy 20, Hastelloys, Zirconium, and Titanium

Sliding Vane Pumps

Brands
Blackmer

Applications
- Liquefied Gases, NGL’s, CO2
- Light Ends, Condensates, Light and Heavy Oils
- Designed for Continuous Cavitation and low NPSHa Applications
- Transfer Pumps
- Corrosive Fluids

Specifications
- Horsepower up to 125 hp (93 kw)
- Volume up to 2,200 usgpm (12,000 m3/day)
- Pressure up to 200 psig (1,380 kpag)
- Available Materials: Ductile Iron, 316SS, Duplex Stainless Steel

Vertical In-Line Multistage Centrifugal Pumps

Brands
Grundfos

Applications
- Water / Oil / Emulsion / Condensate Transfer
- Booster / Charge Pumps
- Transfer Pumps
- Most Fluids

Specifications
- Horsepower up to 100 hp (75 kw)
- Volume up to 790 usgpm (4,300 m3/day)
- Pressure up to 995 ft (303 m) 430 psig (2,965 kpag)
- Available Materials: Ductile Iron, and 316 Stainless Steel

MAG-DRIVE SEALLESS CENTRIFUGAL PUMPS

Brands
Magnatex

Applications
- Water / Oil / Emulsion / Condensate Transfer
- Booster / Charge Pumps
- Transfer Pumps
- Corrosive Fluids
- Most Fluids

Specifications
- Horsepower up to 250 hp (185 kw)
- Volume up to 5,000 usgpm (27,250 m3/day)
- Pressure up to 720 ft (220 m) 310 psig (2,140 kpag)
- Available Materials: Ductile Iron, 316SS, Duplex Stainless Steel, Nickel, Alloy 20, Hastelloys, Zirconium, and Titanium

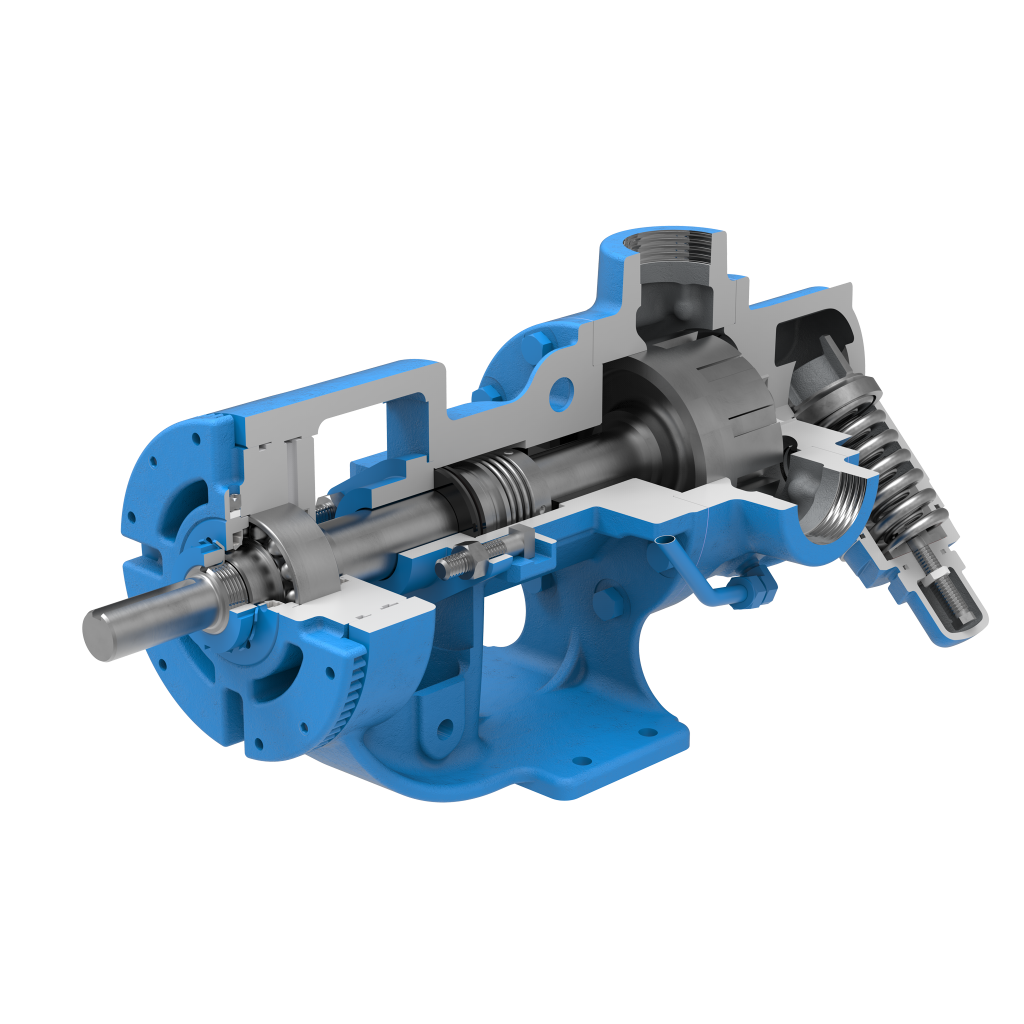

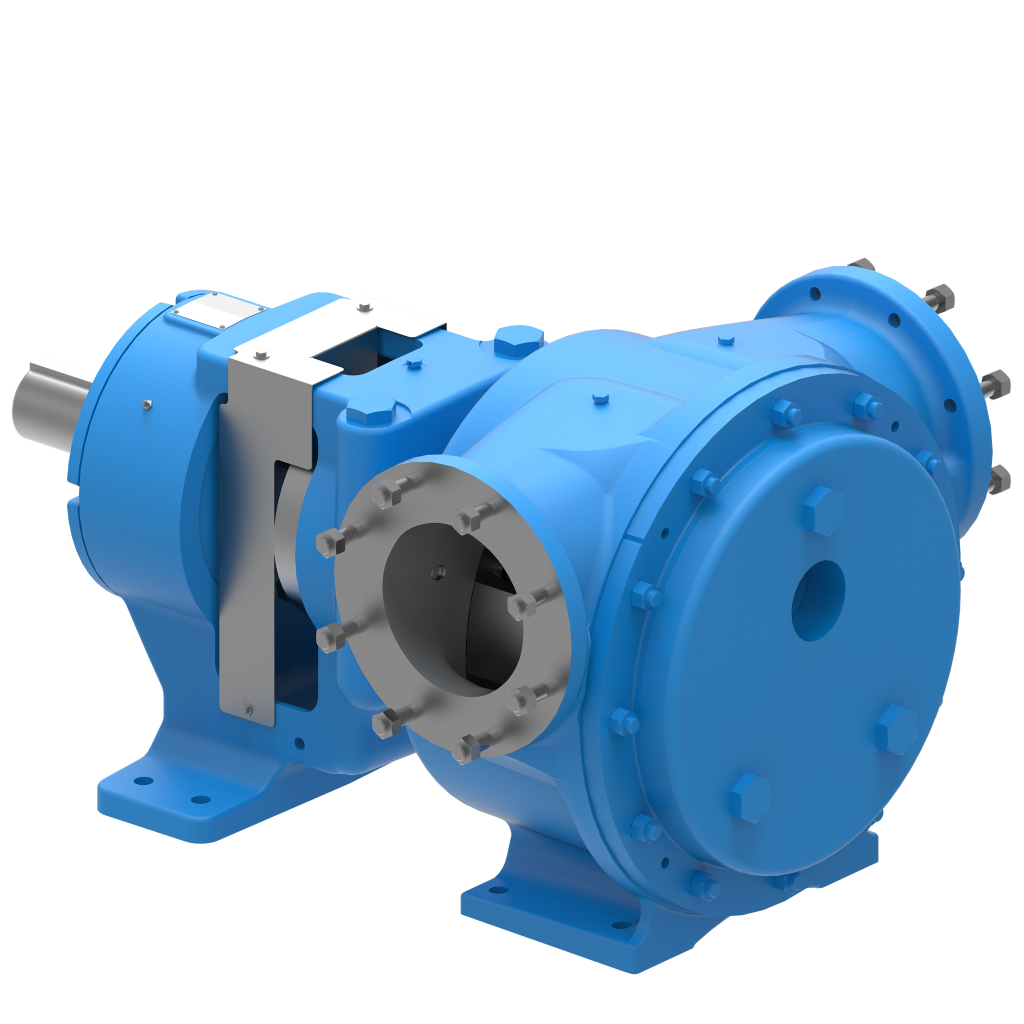

Rotary Gear Pumps

Brands
Viking, Blackmer, Gorman-Rupp

Applications
- NGL, LPG, Fuels
- Oils
- Asphalt, Tar, Resins
- Food Products
- Viscous Fluids
- Abrasive Fluids

Specifications
- Horsepower up to 100 hp (75 kw)
- Volume up to 600 usgpm (3,270 m3/day)
- Pressure up to 300 psig (2,070 kpag)
- Available Materials: Ductile Iron, Cast Iron, Hardened Iron, Stainless Steel

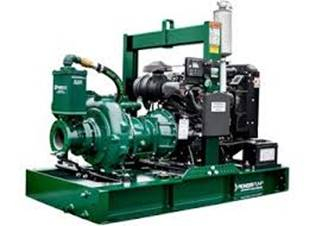

ENGINE DRIVE PUMPS

Brands
NOV, Pioneer, All Pumps

Applications
- Water / Oil / Emulsion / Condensate / Polymer Injection
- Waste Disposal
- Transfer Pumps
- Corrosive Fluids
- Most Fluids

Specifications
- Horsepower up to 2,000 hp (150 kw)
- Volume up to 11,000 usgpm (60,000 m3/day)
- Pressure up to 6,650 psig (45,850 kpag)
- Available Materials: Ductile Iron, Carbon Steel, 316SS, Duplex Stainless Steel, Nickel, Alloy 20, Hastelloys, Zirconium, and Titanium

SELF PRIMING PUMPS

Brands
Pioneer, Gorman Rupp, Titan

Applications
- Fresh Water
- Sump liquids
- Corrosive Fluids
- Most Fluids

Specifications
- Horsepower up to 1,200 hp (900 kw)
- Volume up to 11,000 usgpm (60,000 m3/day)
- Pressure up to 350 psig (2,400 kpag)
Available Materials: Ductile Iron, 316 Stainless Steel, and Duplex Stainless Steel

SLURRY AND FRESH WATER PUMPS

Brands
Pioneer, Mission Magnum, Sand Master, 2500 Supreme, Type S & W

Applications
- Water / Oil / Emulsion / Drilling Mud Transfer
- Booster / Charge Pumps
- Transfer Pumps
- Slurry Fluids
- Abrasive Fluids
- Heavy Duty Applications
- Most Fluids

Specifications
- Horsepower up to 1,200 hp (900 kw)
- Volume up to 11,000 usgpm (60,000 m3/day)
- Pressure up to 350 psig (2,400 kpag)
- Available Materials: Hard Iron, Ductile Iron, 316 Stainless Steel, and Duplex Stainless Steel

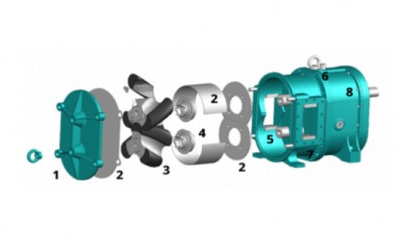

Rotary Lobe API 676 Pumps

Brands
Börger

Applications
- Oil / Emulsion / Condensate / Polymer Transfer
- Low to High Viscous Fluids
- Abrasive Fluids
- Recycle Pumps
- Skim Pumps
- Most Fluids

Specifications
- Horsepower up to 60 hp (45 kw)
- Volume up to 790 usgpm (4,300 m3/day)
- Pressure up to 175 psig (1,200 kpag)
- Available Materials: Cast Iron, 316 Stainless Steel, Teflon and Ceramic Coatings

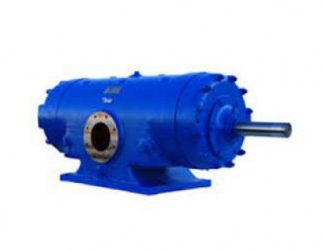

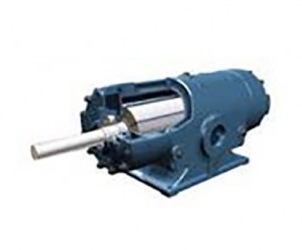

Rotary Vane Compressors

Brands
Ro-Flo

Applications
- Sweet & Sour Gases
- Acids
- Wet Gas Services
- Industrial Process Gases of All Kinds

Specifications
- Horsepower up to 400 hp (300 kw)
- Volume up to 3,500 MSCFD
- Inlet to 28" Hg vacuum
- Discharge pressure to 150 PSIG
- Available Materials: Ductile Iron

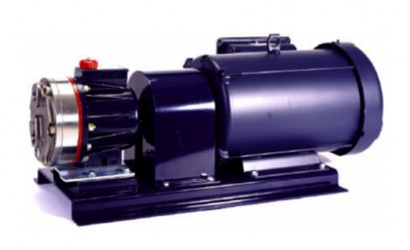

Sealess Diaphragm Pumps

Brands
Hydra-Cell

Applications
- Water / Oil / Emulsion / Condensate Transfer & Injection
- Chemical Applications
- Transfer / Injection Pumps
- Corrosive Fluids
- Most Fluids

Specifications
- Horsepower up to 35 hp (26 kw)
- Volume up to 37 usgpm (200 m3/day)
- Pressure up to 2,500 psig (17,235 kpag)
- Available Materials: Cast Iron, Brass, and 316 Stainless Steel
