CSM PUMP PACKAGING...PUMP PACKAGING IS LITERALLY OUR NAME

We combine the distribution and sales of many reputable pump brands with a highly-experienced packaging design team to deliver sound designs on time and on budget, whether we’re working directly with you or through your EPC. Unlike a typical fabrication shop, CSM  has a pump-focused approach with the ability to fully design packages utilizing our in-house drafting and engineering capabilities.

Want to see what your project will look like before it’s built?

We can provide conceptual drawings and P&IDs upon request. Our strong background in field service ensures that layouts are maintenance-friendly and that equipment can be easily operated. Once ready to build, your package is assembled in an environmentally-controlled, secure indoor shop complete with 100,000 pound overhead crane capacity.

Our lifting system was custom-designed to virtually eliminate the need for third party cranes at load-out time, and we pass those savings directly on to you. Pre-wiring in the shop reduces costly field time and utilizes qualified local tradesmen. CSM’s field service capabilities gives you an expert on-site during commissioning. Continued support long after your package leaves our shop is part of our commitment to Total Product Lifecycle. In today’s challenging economic landscape, CSM Pump’s efficiencies matter now more than ever.

Hands down, CSM builds the nicest pump packages and demonstrates great professionalism and the best workmanship

- Fred M, client inspector - Edmonton, AB

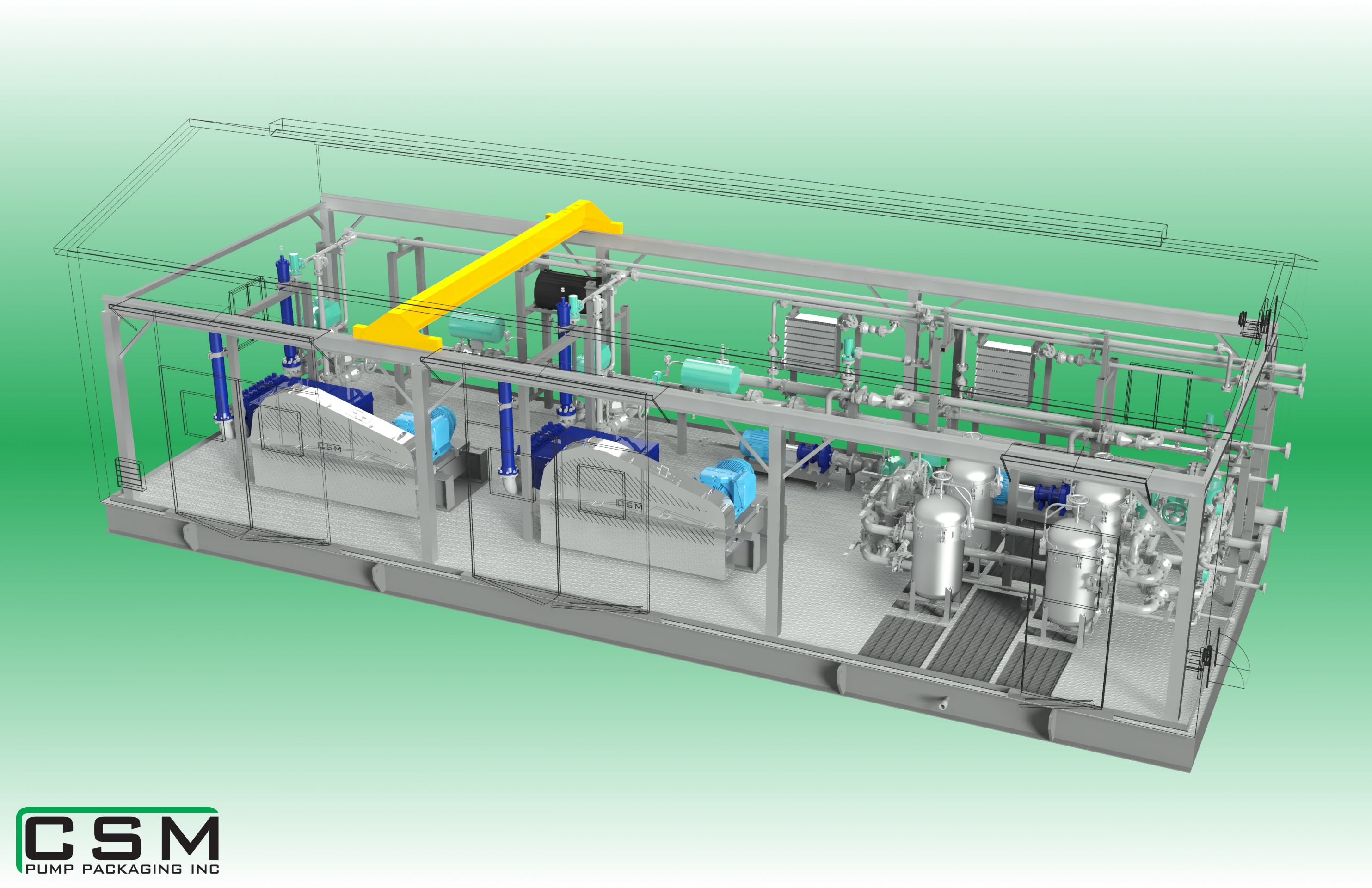

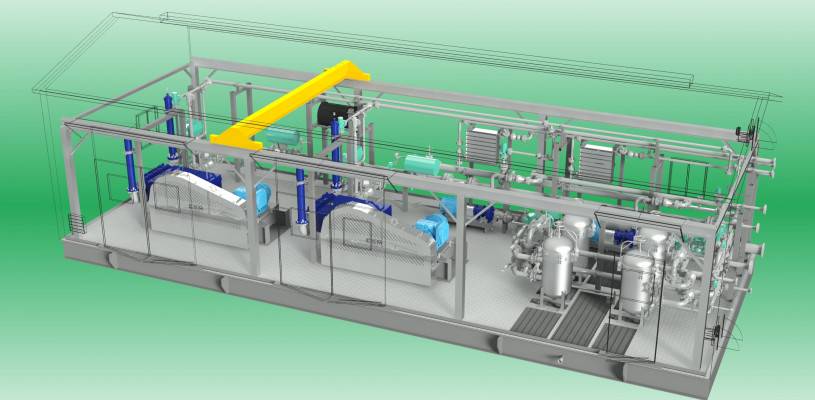

RECIP. WATER INJECTION PACKAGE

Reciprocating Pump Package:

  • 800 HP
  • 1700 m3/day @ 21,000 kPag
  • Sour Produced Water
  • 3 Ton Crane
  • 20’W x 50’L x 17.5’H x 105,000 lbs

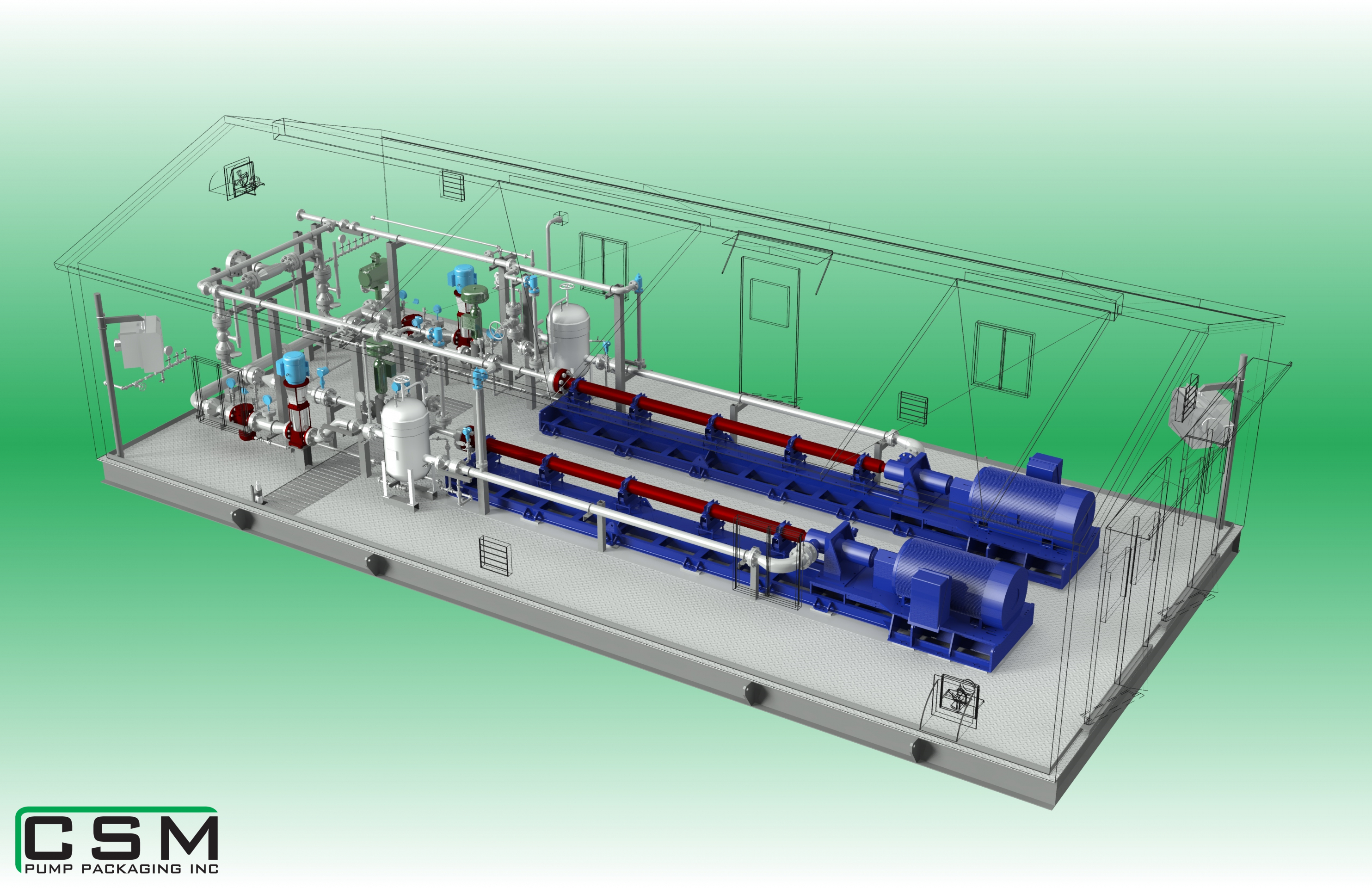

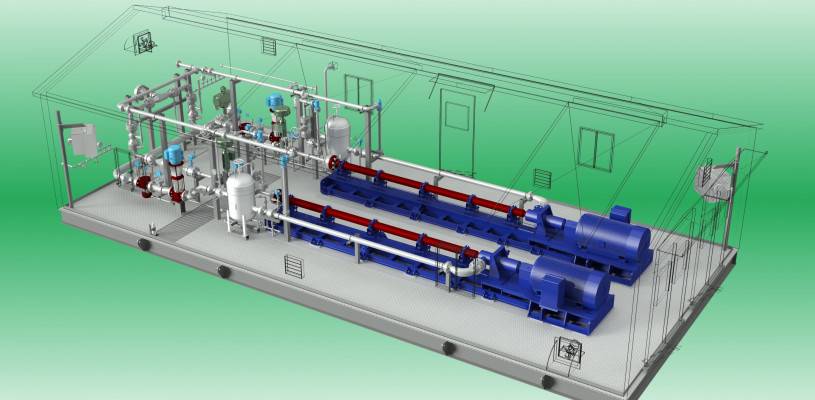

HPS WATER INJECTION PACKAGE

MULTISTAGE CENTRIFUGAL (HPS) PUMP PACKAGE:

  • 900 HP
  • 1800 m3/day @ 20,000 kPag
  • Sour Produced Water
  • 21’W x 46’L x 14.5’H x 89,000 lbs

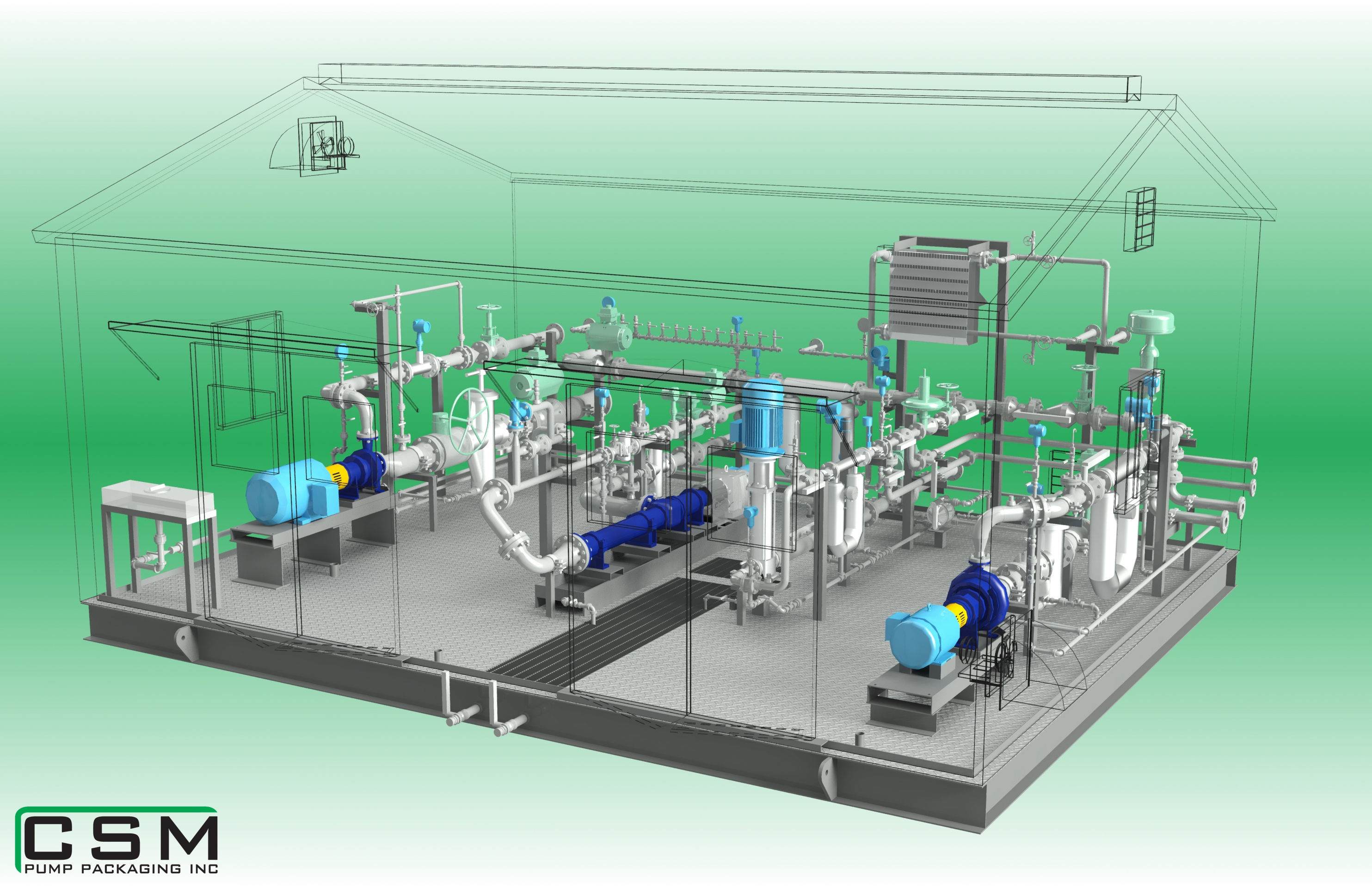

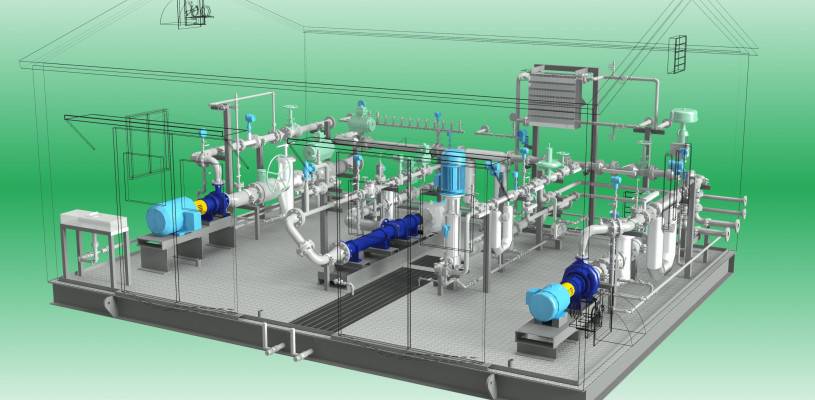

BLENDING / RECYCLE / DESANDING PACKAGE

CENTRIFUGAL AND PROGRESSIVE CAVITY PUMP PACKAGE:

  • 200 HP
  • 5500 m3/day @ 2,000 kPag
  • Sour Produced Water, Oil, & Emulsion
  • 21’W x 26’L x 14.5’H x 40,000 lbs

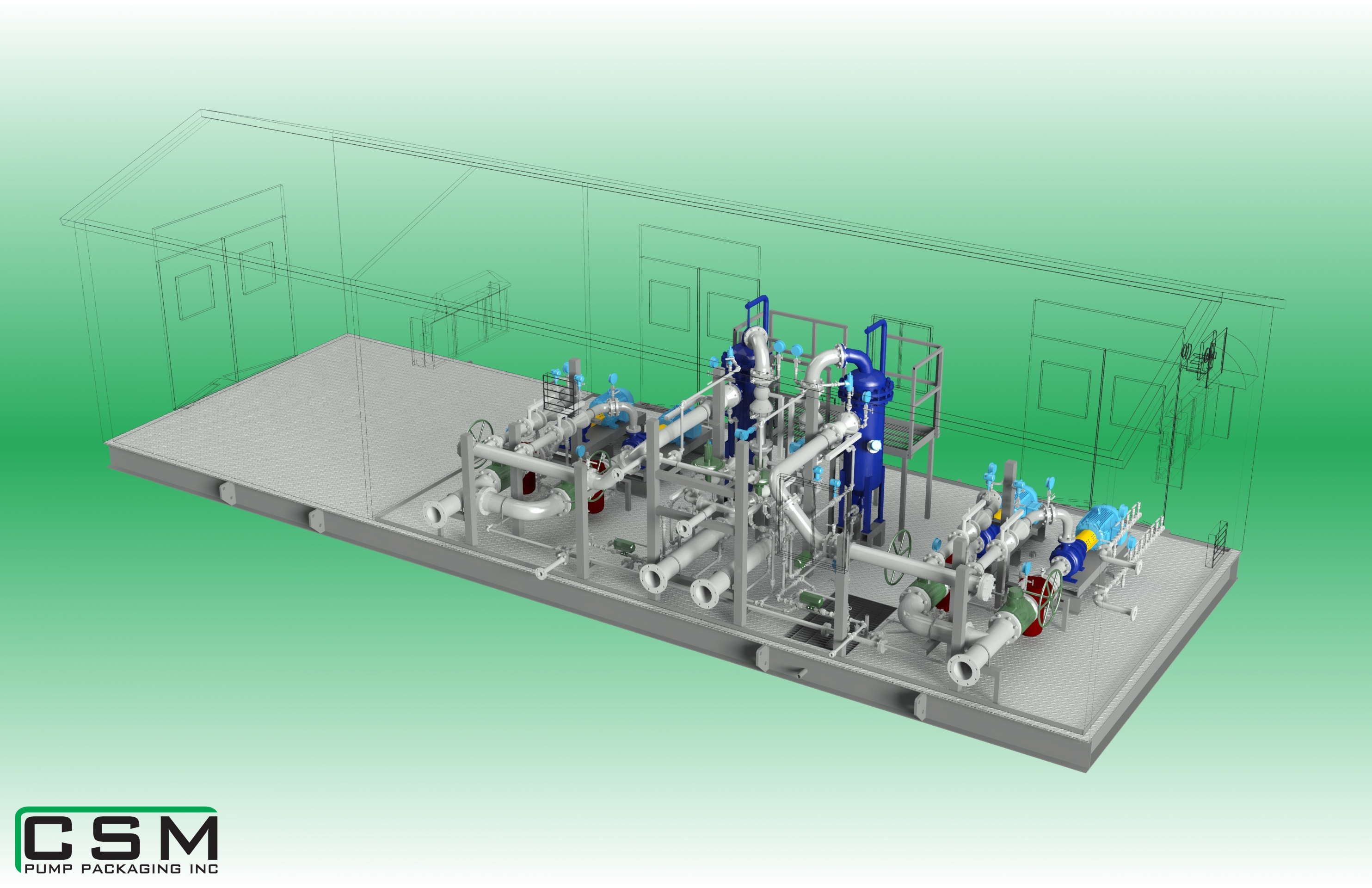

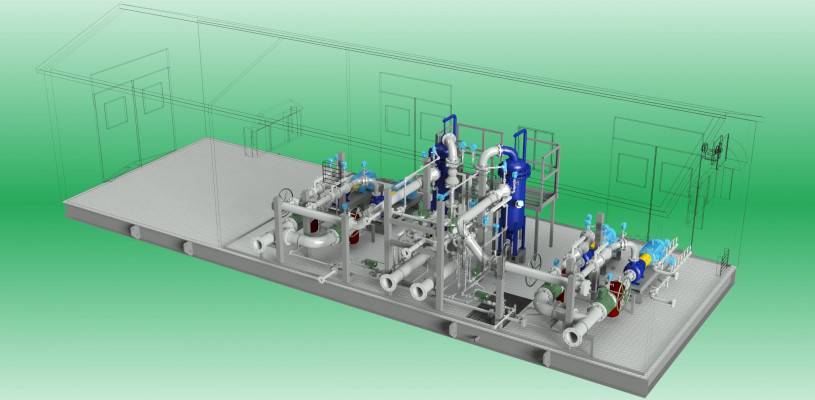

CYCLONE FILTER PACKAGE

CENTRIFUGAL PUMP WITH CYCLONE FILTERS PACKAGE:

  • 100 HP
  • 8800 m3/day @ 500 kPag
  • Sour Produced Water
  • 17.5’W x 14’L MCC
  • 17.5’W x 48’L x 14’H x 46,000 lbs

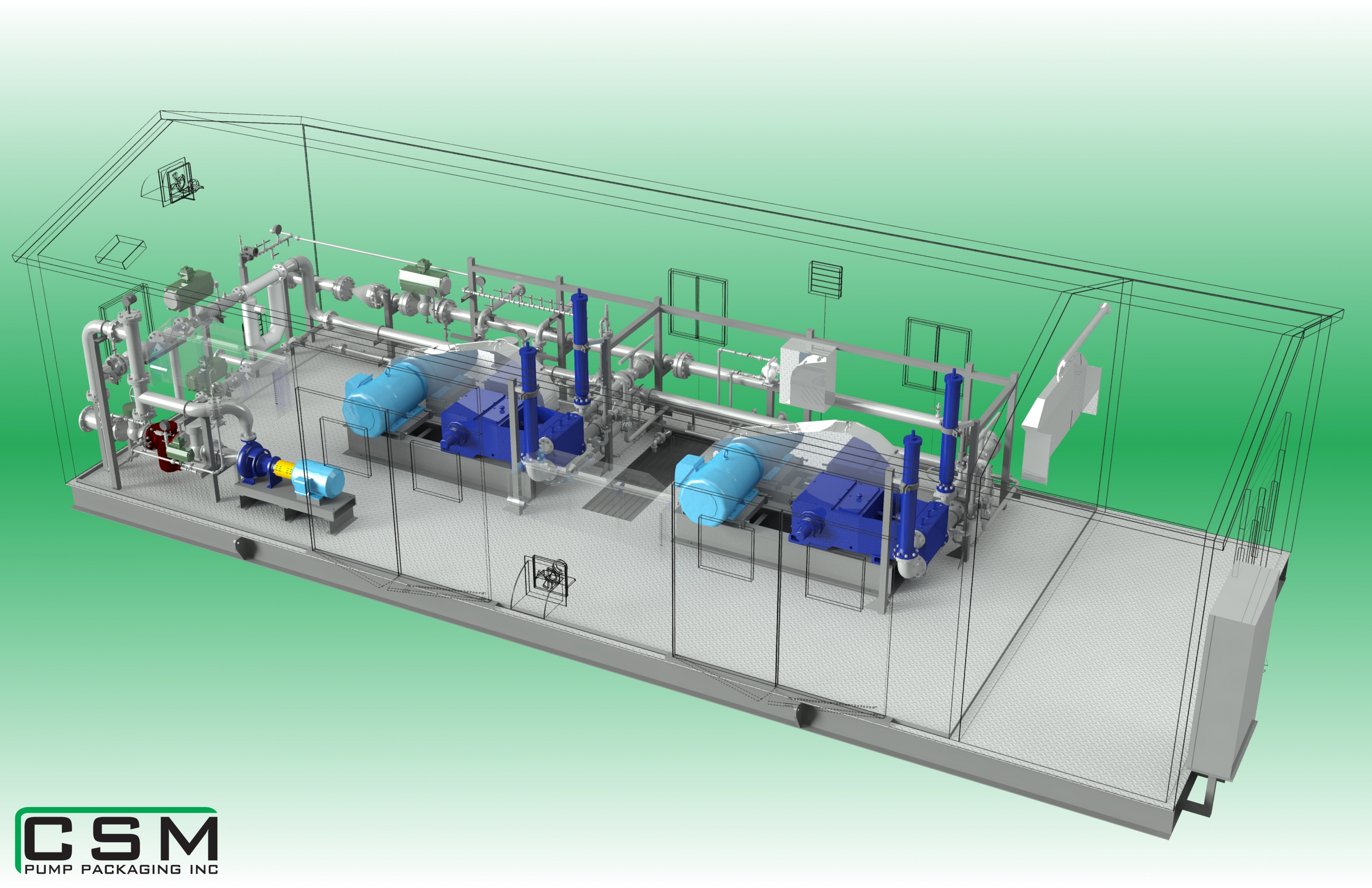

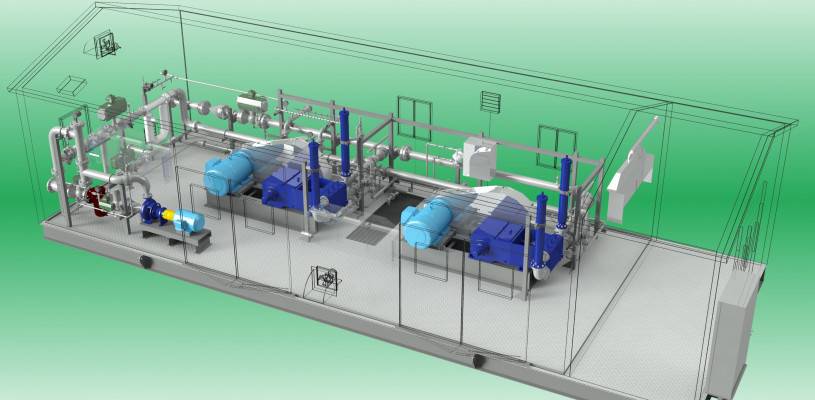

LACT PACKAGE

RECIPROCATING LACT PUMP PACKAGE:

  • 500 HP
  • 3000 m3/day @ 9,000 kPag
  • Light and Heavy Oils
  • 19’W x 7’L MCC
  • 19’W x 48’L x 14.5’H x 70,000 lbs

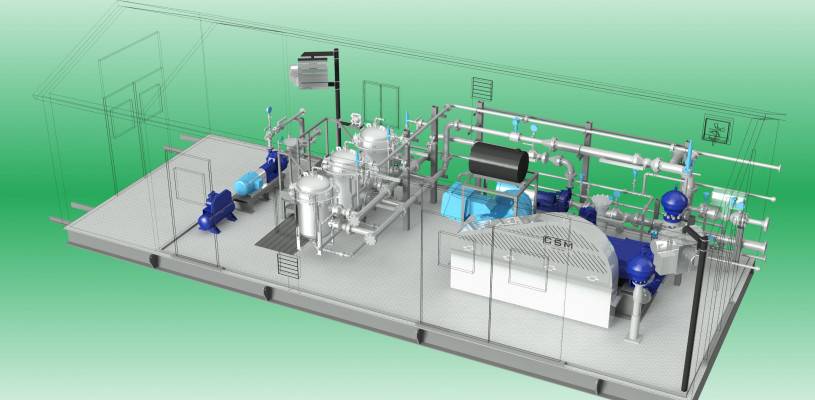

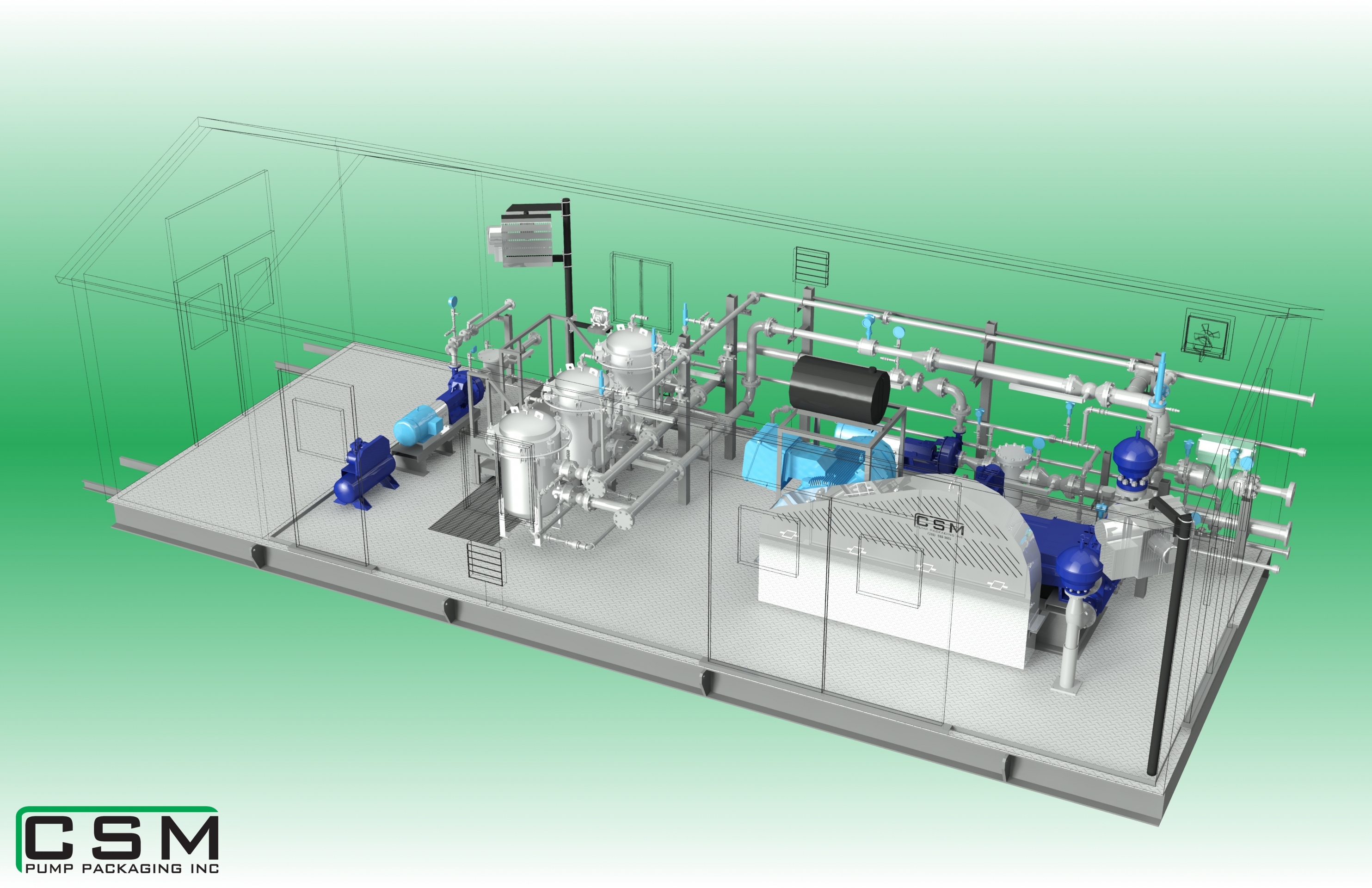

CUSTOM BUILD RENTAL PUMP PACKAGES

ALL PUMP PACKAGES:

  • Up to ~1200 HP
  • Up to ~60,000 m3/day and ~42,000 kPag
  • All liquids

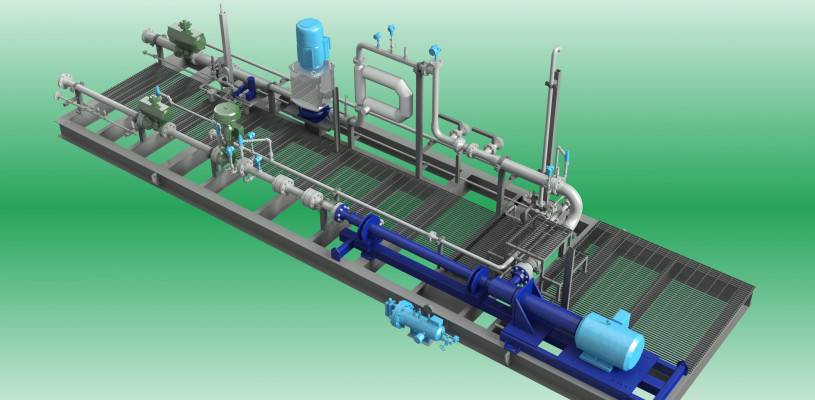

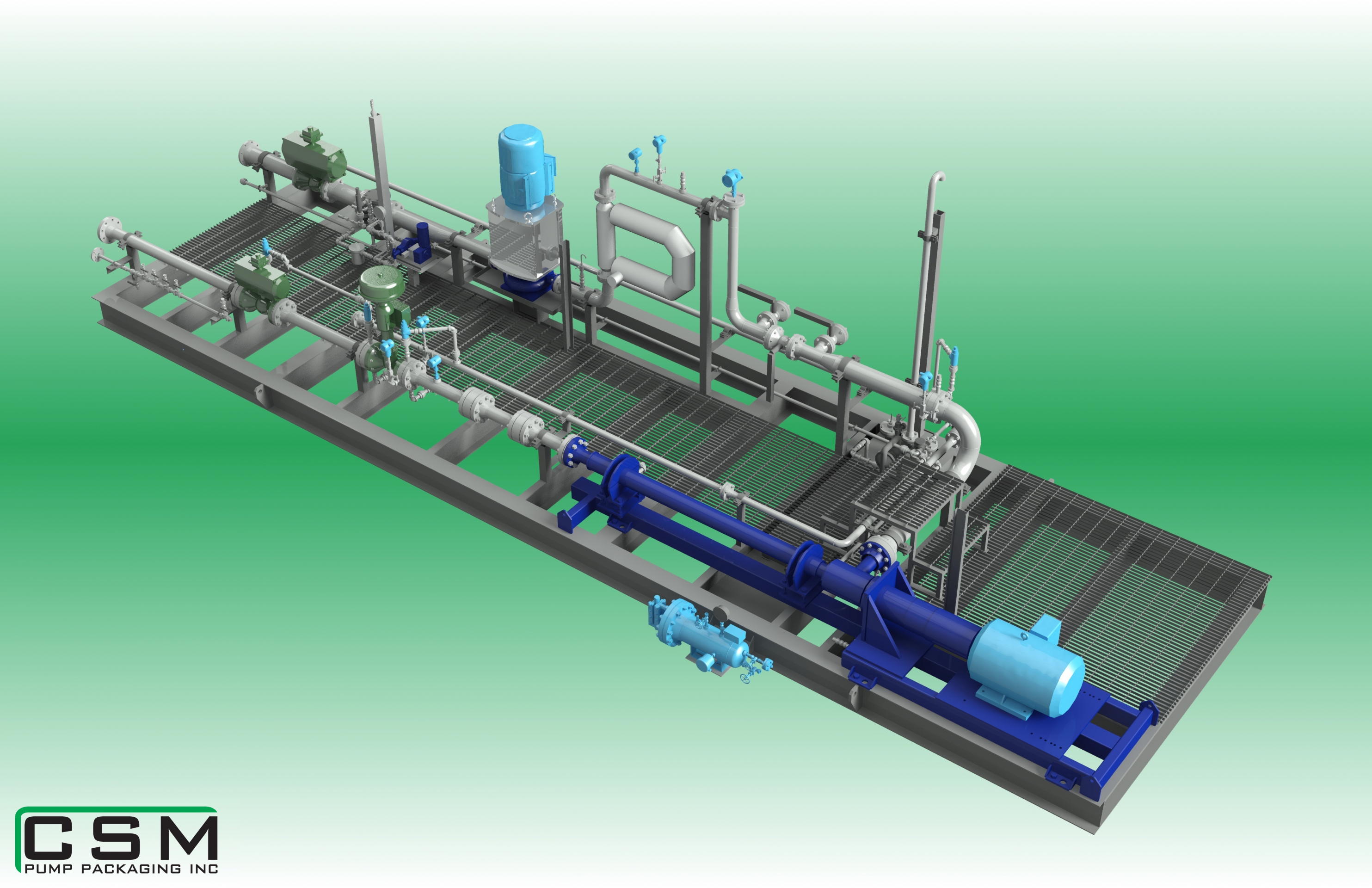

OUTDOOR NGL & CONDENSATE TRANSFER PACKAGE

MULTISTAGE CENTRIFUGAL (HPS) PUMP PACKAGE:

  • 900 HP
  • 1800 m3/day @ 20,000 kPag
  • Sour Produced Water
  • 21’W x 46’L x 14.5’H x 89,000 lbs

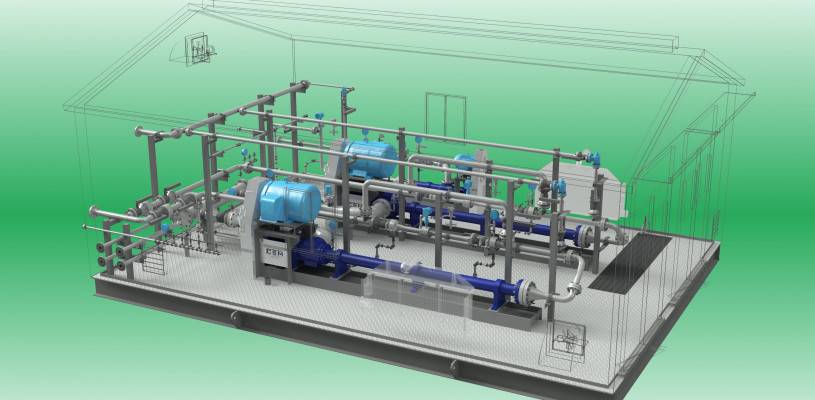

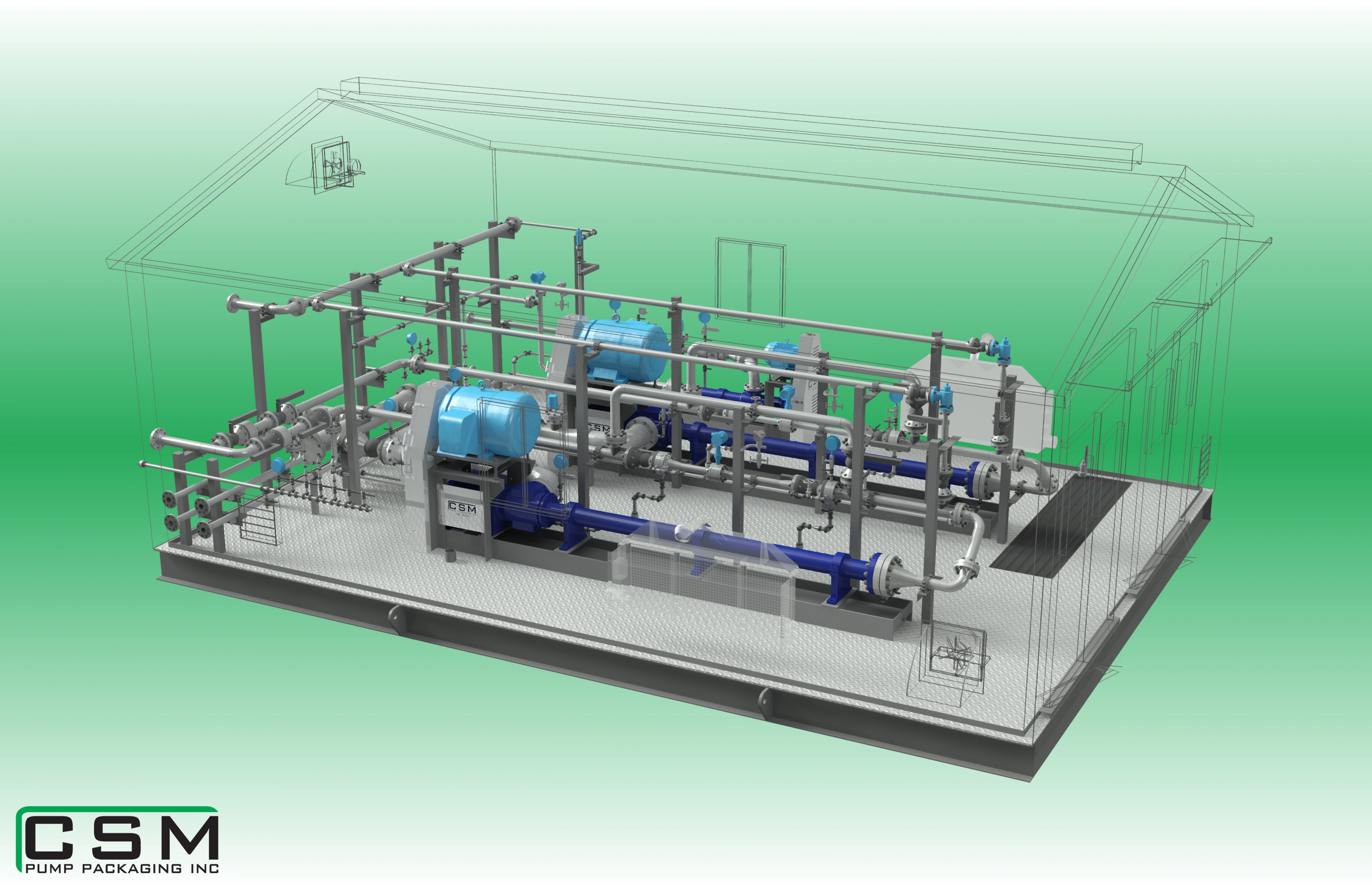

RECYCLE / SKIM PACKAGE

PROGRESSIVE CAVITY PUMP PACKAGE:

  • 300 HP
  • 3000 m3/day @ 5,000 kPag
  • Light and Heavy Oil
  • 21’W x 29’L x 14’H x 45,000 lbs

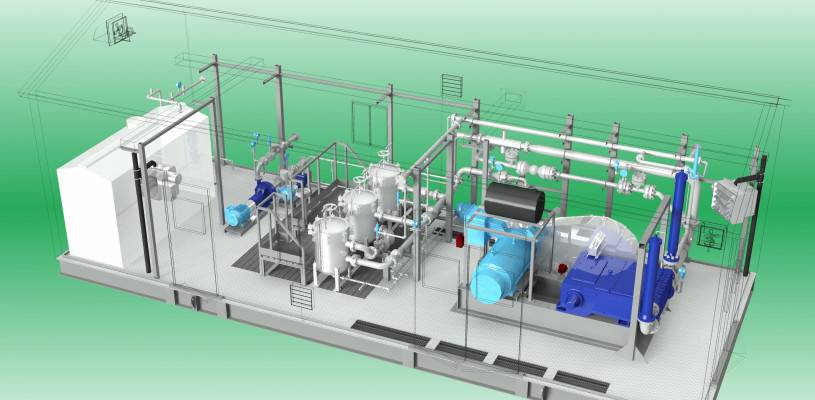

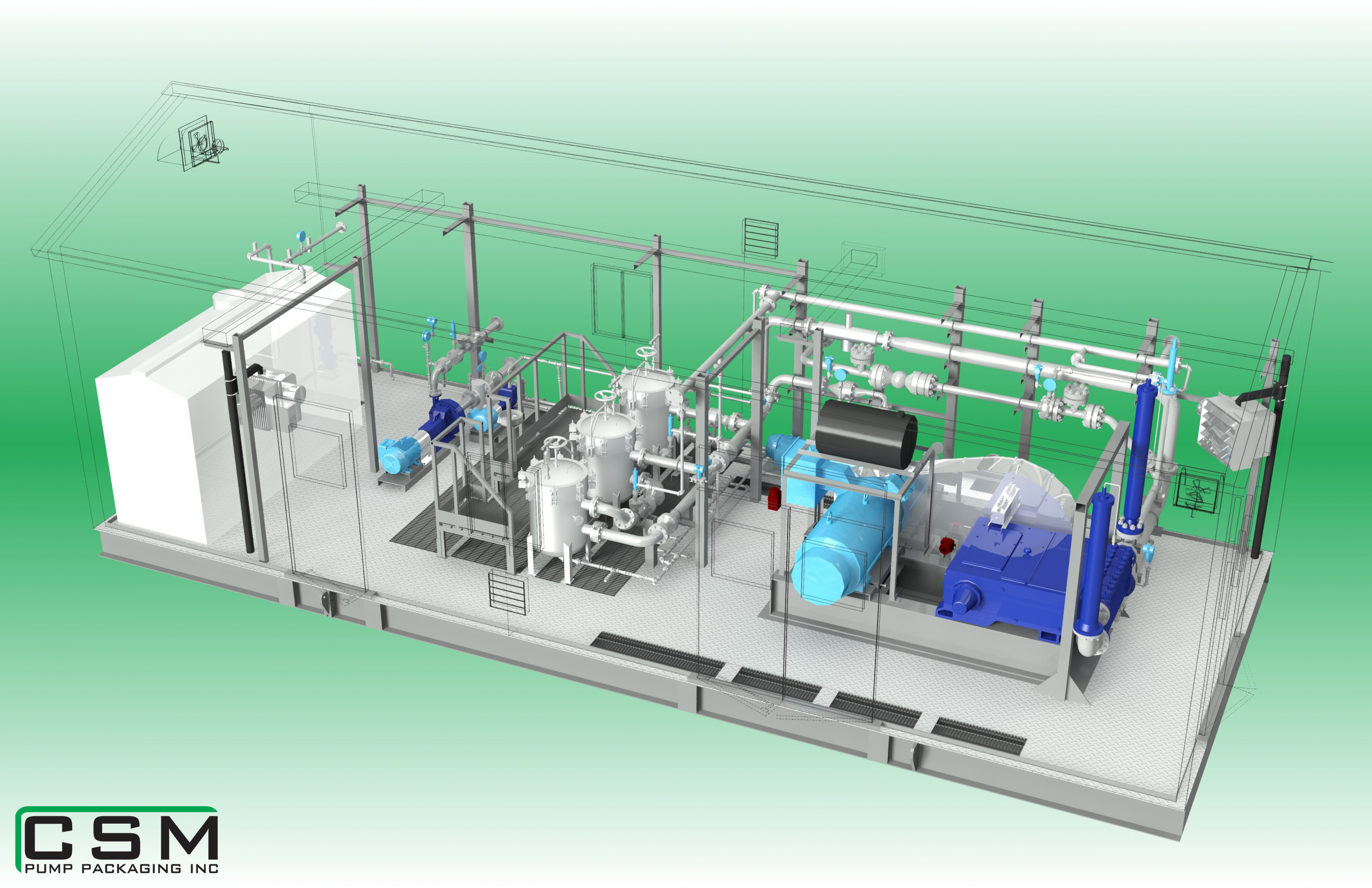

WATER DISPOSAL PACKAGE

RECIPROCATING PUMP PACKAGE:

  • 400 HP
  • 1000 m3/day @ 21,000 kPag
  • Sour Disposal Water
  • 17’W x 42’L x 14’H x 65,000 lbs

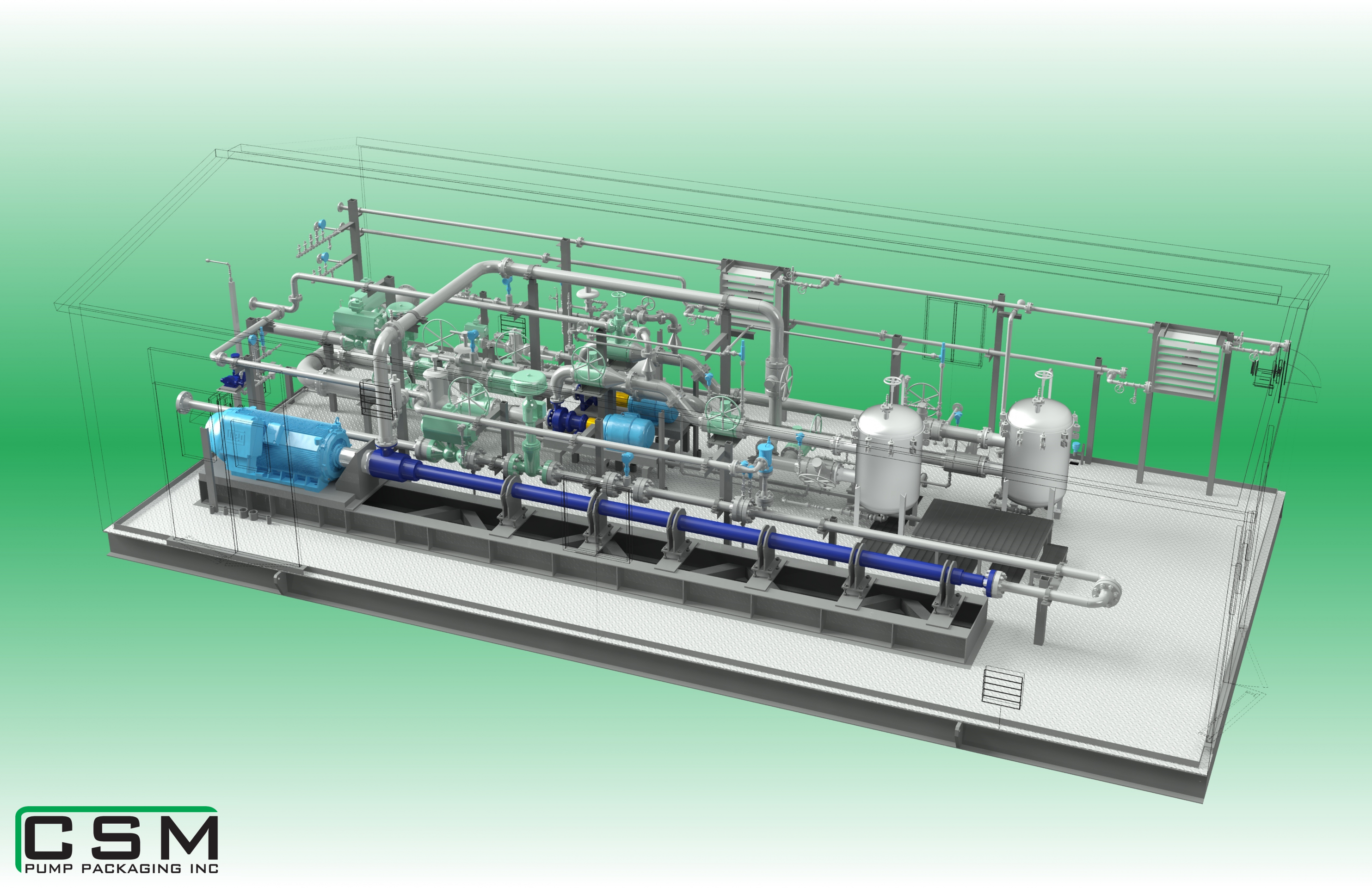

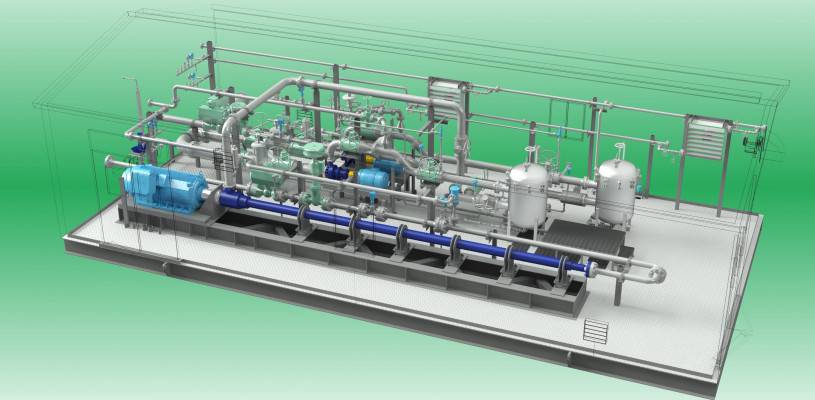

WATER INJECTION PACKAGE

MULTISTAGE CENTRIFUGAL (HPS) PUMP PACKAGE:

  • 600 HP
  • 1800 m3/day @ 14,000 kPag
  • Sour Produced Water
  • 23’W x 48’L x 15’H x 90,000 lbs

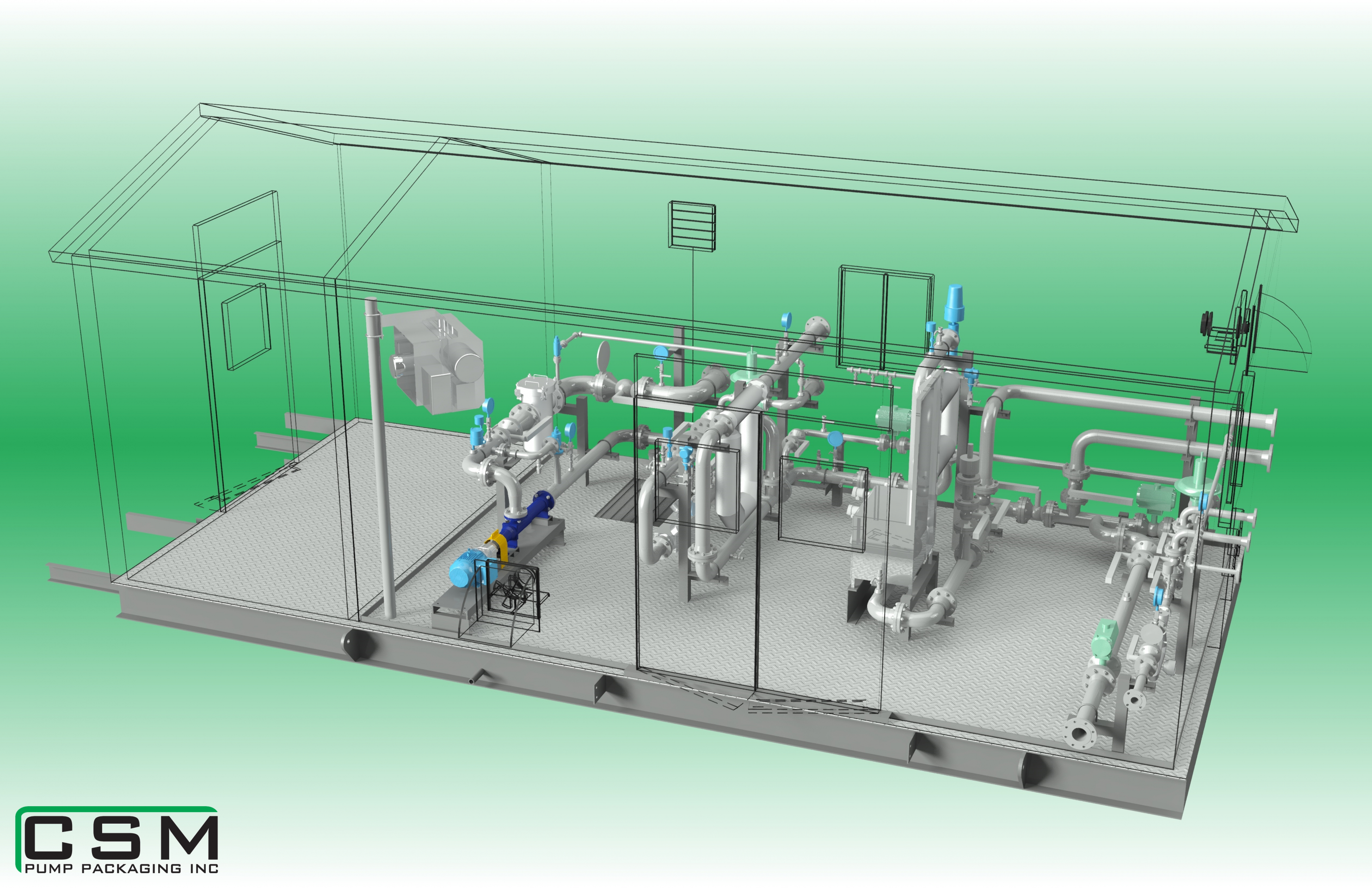

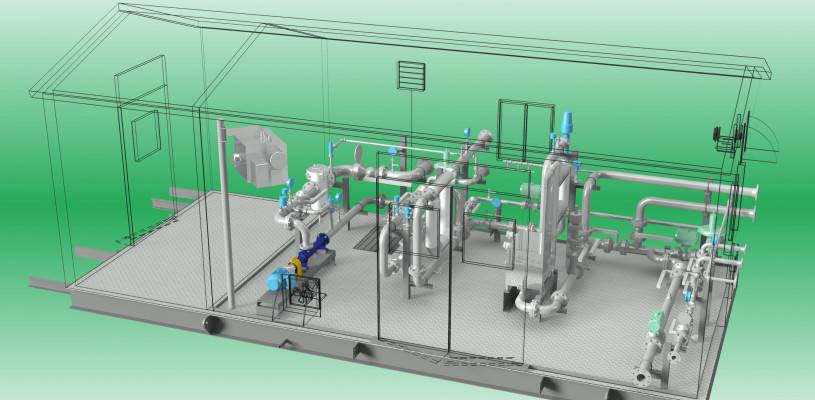

BLENDING PACKAGE

CENTRIFUGAL PUMP PACKAGE:

  • 50 HP
  • 300 m3/day @ 2,000 kPag
  • Heavy Oil
  • 14’W x 7’L MCC
  • 14’W x 31’L x 13’H x 28,000 lbs

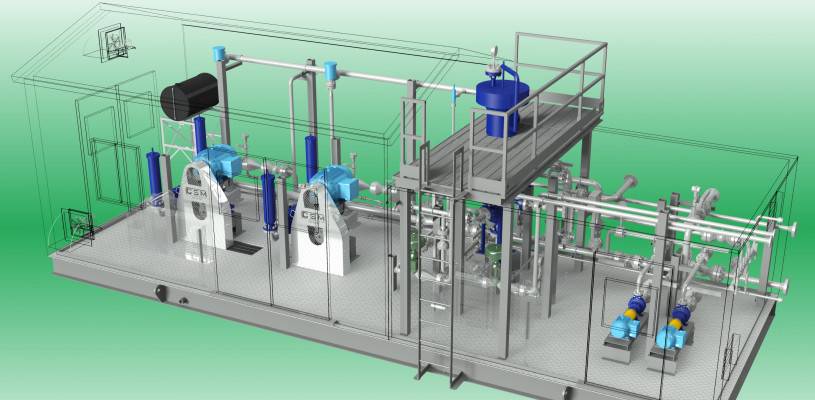

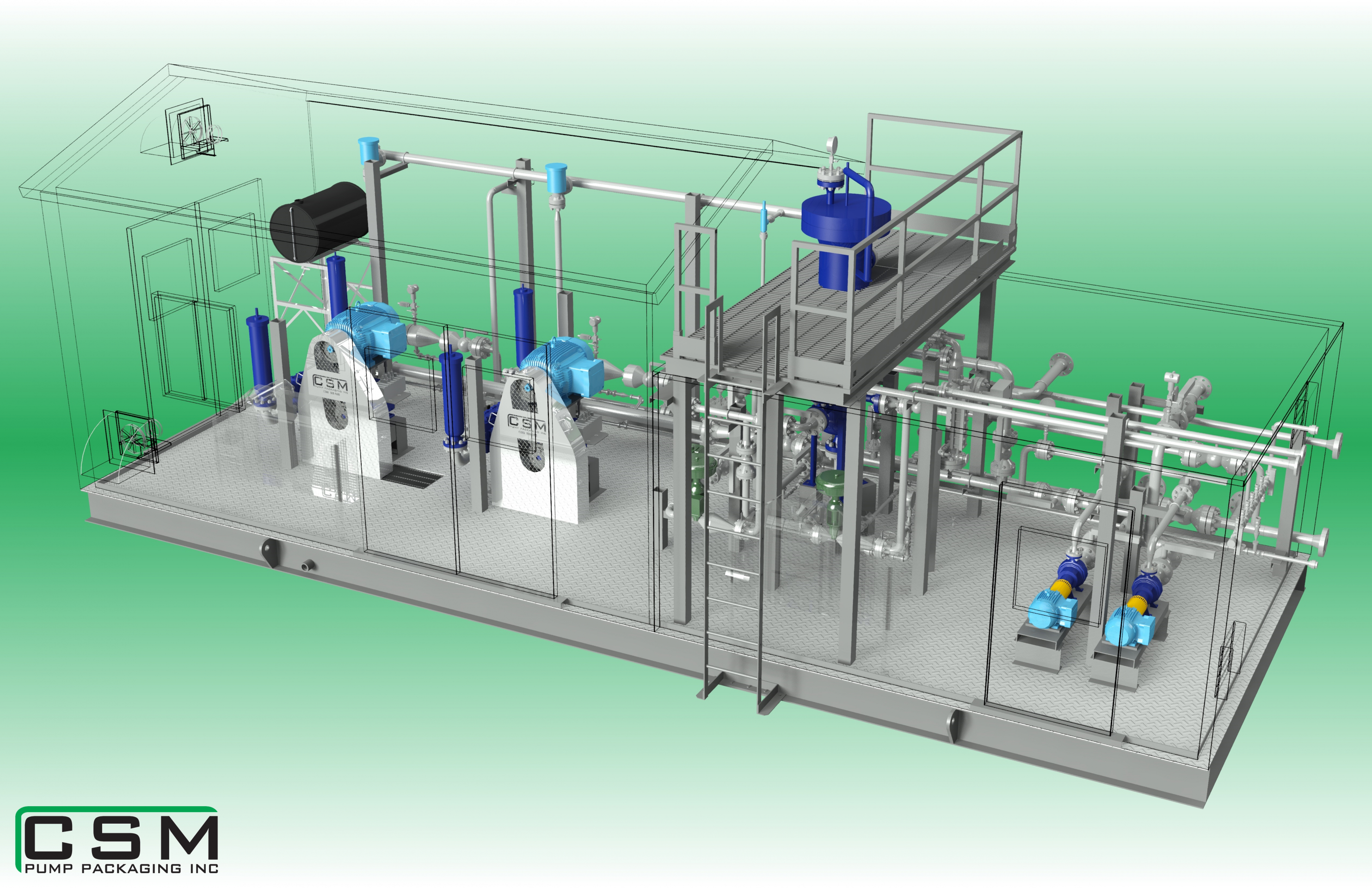

CONDENSATE WITH COALESCER PACKAGE

RECIPROCATING PUMP PACKAGE:

  • 100 HP
  • 1500 m3/day @ 3,500 kPag
  • Condensate
  • 12’W x 33’L x 12.5’H x 41,000 lbs

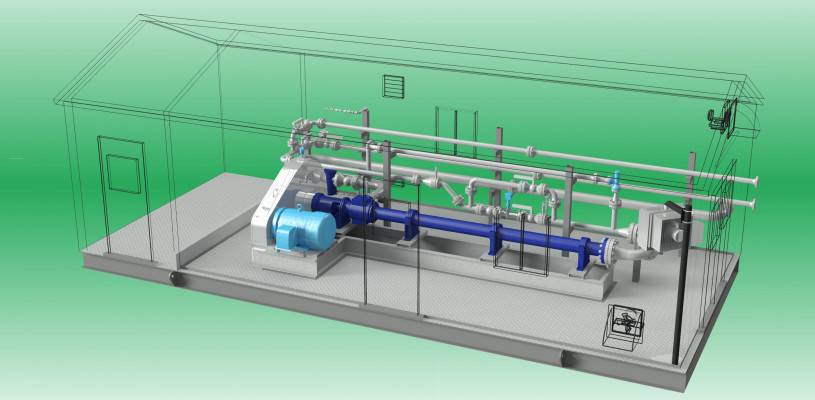

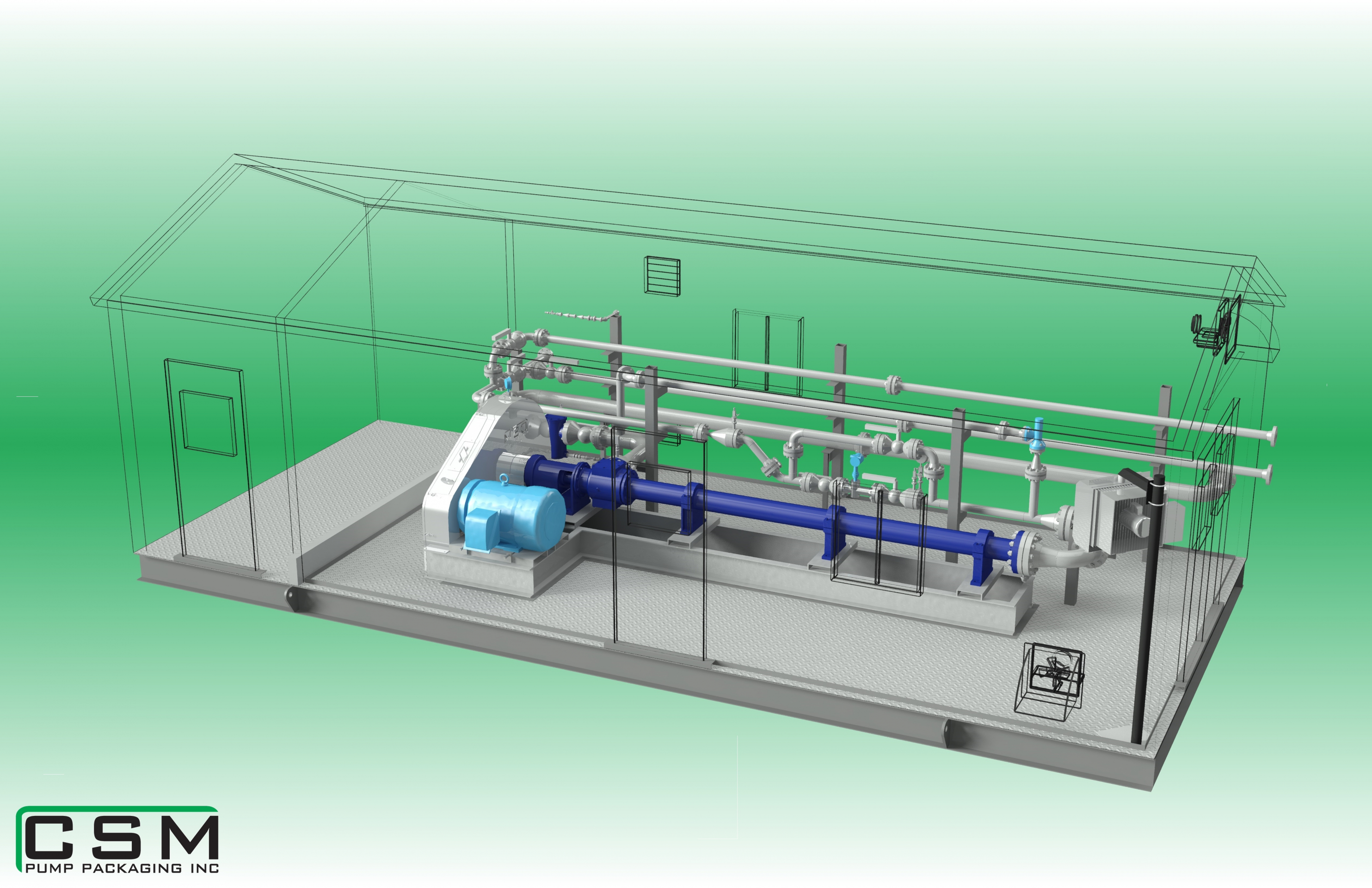

MULTIPHASE (TRIPHASE) PACKAGE

PROGRESSIVE CAVITY PUMP PACKAGE:

  • 150 HP
  • 3,000,000 SCFD Gas, 1100 m3/day @ 4,800 kPag
  • Sour Gas, Condensate, & Oils
  • 16’W x 6.5’L MCC
  • 16’W x 36’L x 13.5’H x 50,000 lbs

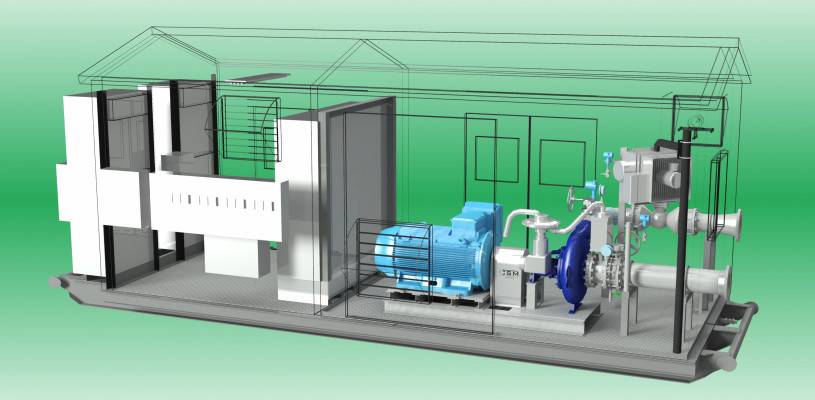

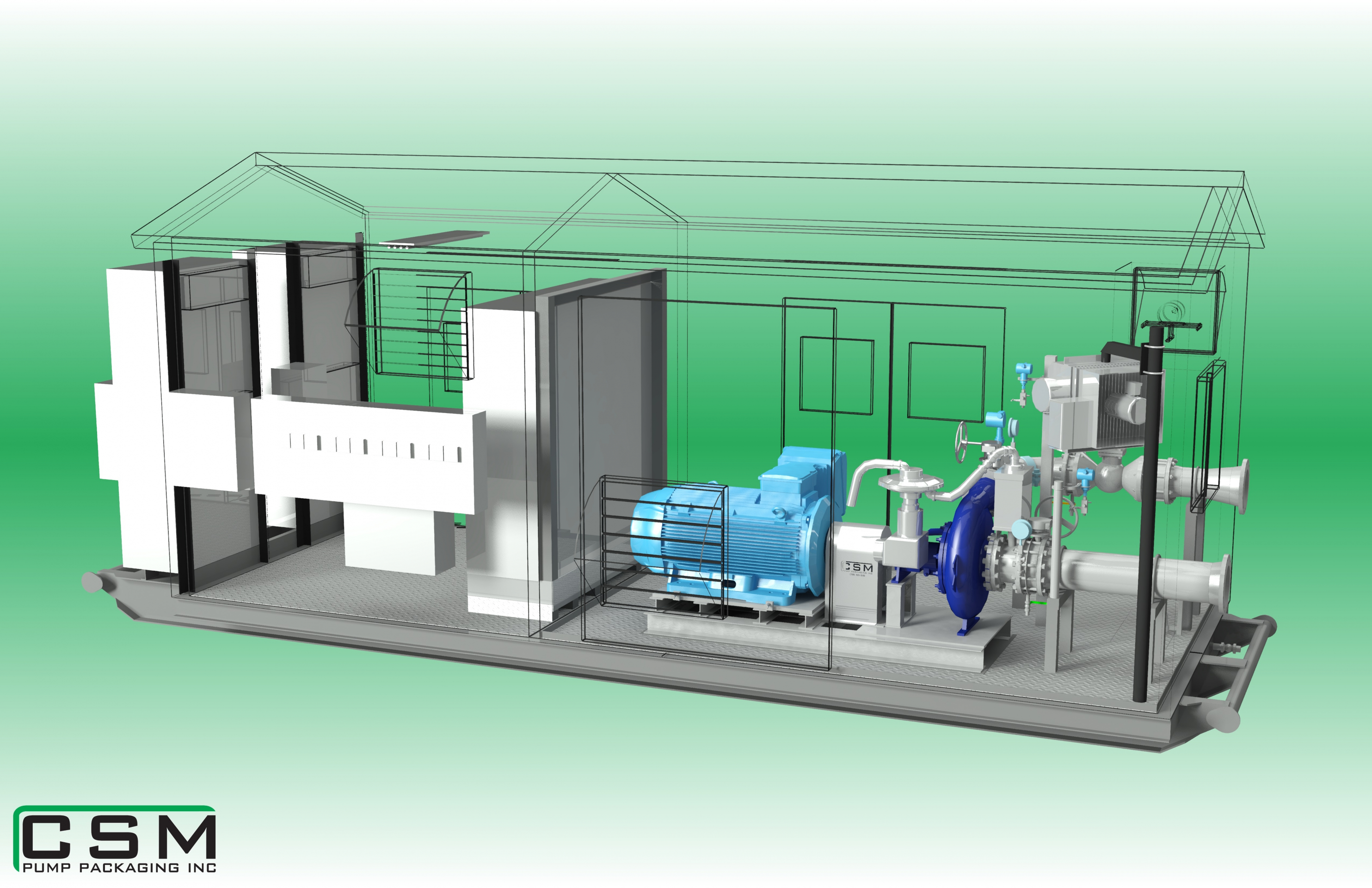

PORTABLE FRESH WATER TRANSFER PACKAGE

SELF PRIMING PUMP PACKAGE:

  • 700 HP
  • 20,000 m3/day @ 1,400 kPag
  • Fresh Water
  • 11’W x 10’L MCC
  • 11’W x 30’L x 12’H x 33,000 lbs

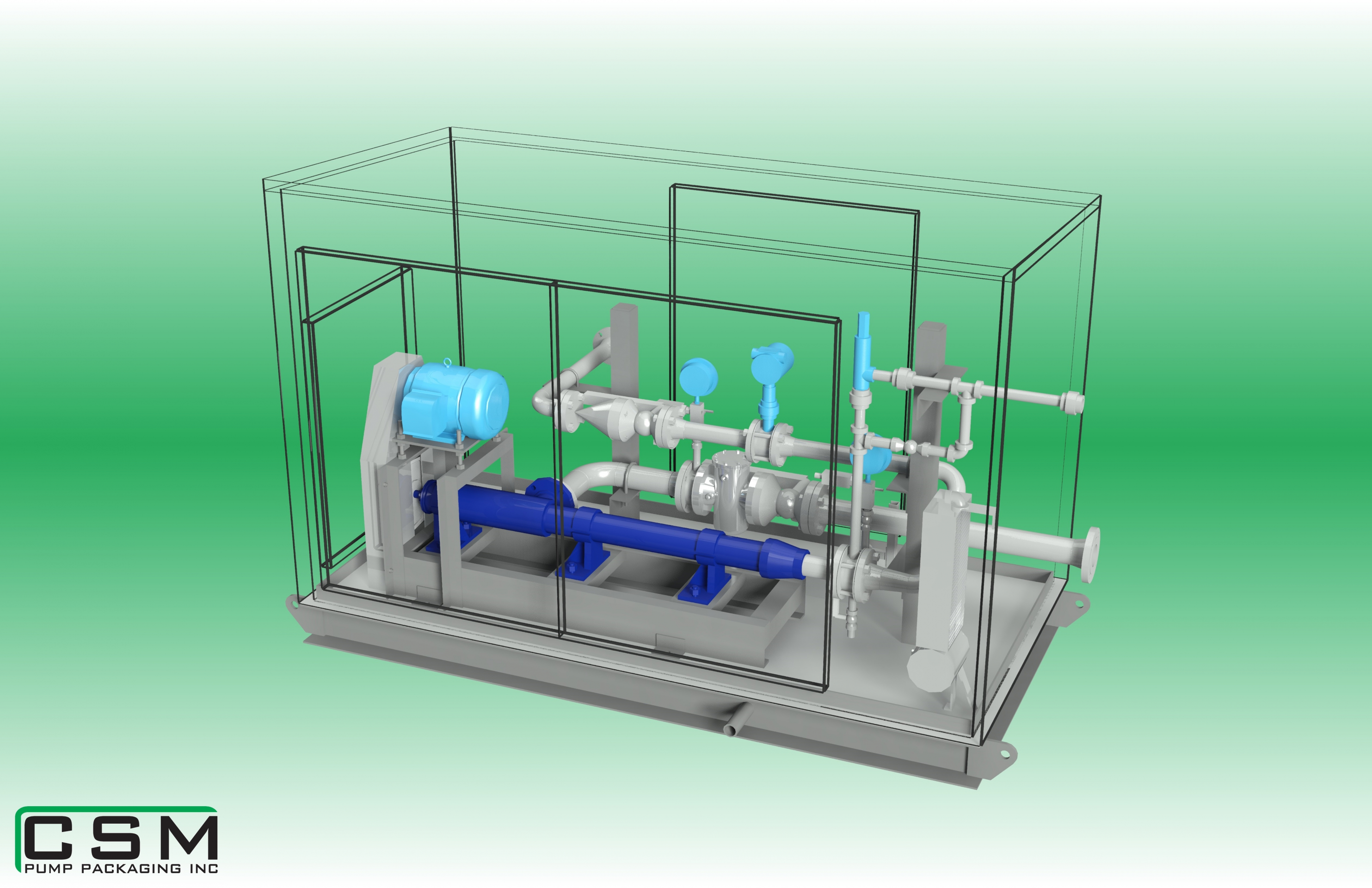

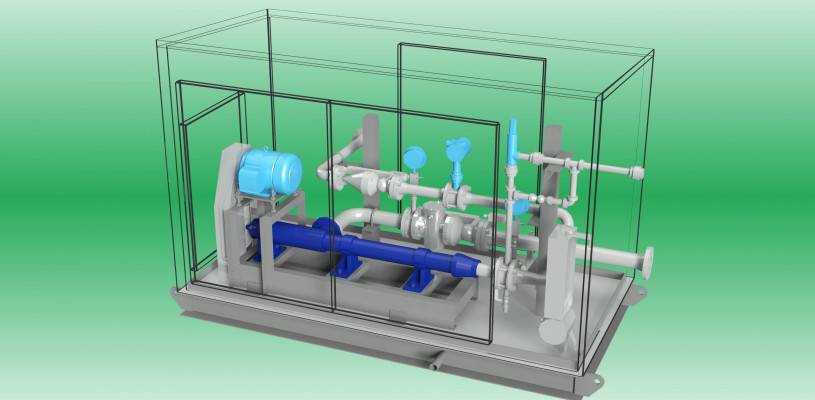

UTILIDOR PACKAGE

PROGRESSIVE PUMP PACKAGE:

  • 7.5 HP
  • 450 m3/day @ 200 kPag
  • Oil
  • 4’W x 9’L x 6’H x 5,000 lbs

DESIGN, BUILD, DELIVER, COMMISSION

CSM is Available 24/7
